433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices

Brand Name : SJK

Model Number : 433.92MHz One-Port SAW Resonators

Certification : SGS, RoHS, REACH

Place of Origin : China

MOQ : 3000pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30K pcs per Month

Delivery Time : 2~4weeks

Packaging Details : 3000pcs /Reel

Nominal Frequency : 433.92MHz

Frequency Tolerance : +/-150KHz

Insertion Loss : 1.3dB Typ.

Quality Factor : 12000

Turnover Temperature : 25℃ Typ.

Frequency Temperature Coefficient : 0.032ppm/℃

DC Insulation Resistance between Any Two Pins : 1.0MΩ min.

Operating Temperature Range : -40°C to +85°C

Size : 1.8x1.4x0.9mm

Rohs Compliant : Yes

Contact Now

433.92MHz One Port SAW Resonator SMD1814 Size High Stability and Reliability Applicationfor Remote Control etc

Features:

One-port Resonator
CSP Package for Surface Mounted Technology (SMT)
RoHS compatible
Package size 1.80x1.40x0.90mm
Electrostatic Sensitive Device(ESD)

Specifications:

Item			Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	fc	433.770	433.920	434.070	MHz
Center Frequency	Tolerance from 433.920MHz	△fc		±150		KHz
Insertion Loss(min)		IL		1.3	2.2	dB
Quality Factor	Unloaded Q	Q_U		12000
Quality Factor	50Ω Loaded Q	Q_L		1500
Temperature Stability	Turnover Temperature	T₀	10	25	40	℃
	Turnover Frequency	f₀		f_c
	Frequency Temperature Coefficient	FTC		0.032		ppm/℃
Frequency Aging	Absolute Value during the First Year	\|fA\|		≤10		ppm/yr
DC Insulation Resistance between Any Two Pins			1.0			MΩ
RF Equivalent RLC Model	Motional Resistance	R_M		12.196		Ω
	Motional Inductance	L_M		183.82		μH
	Motional Capacitance	C_M		0.733		fF
	Static Capacitance	C₀		2.23		pF

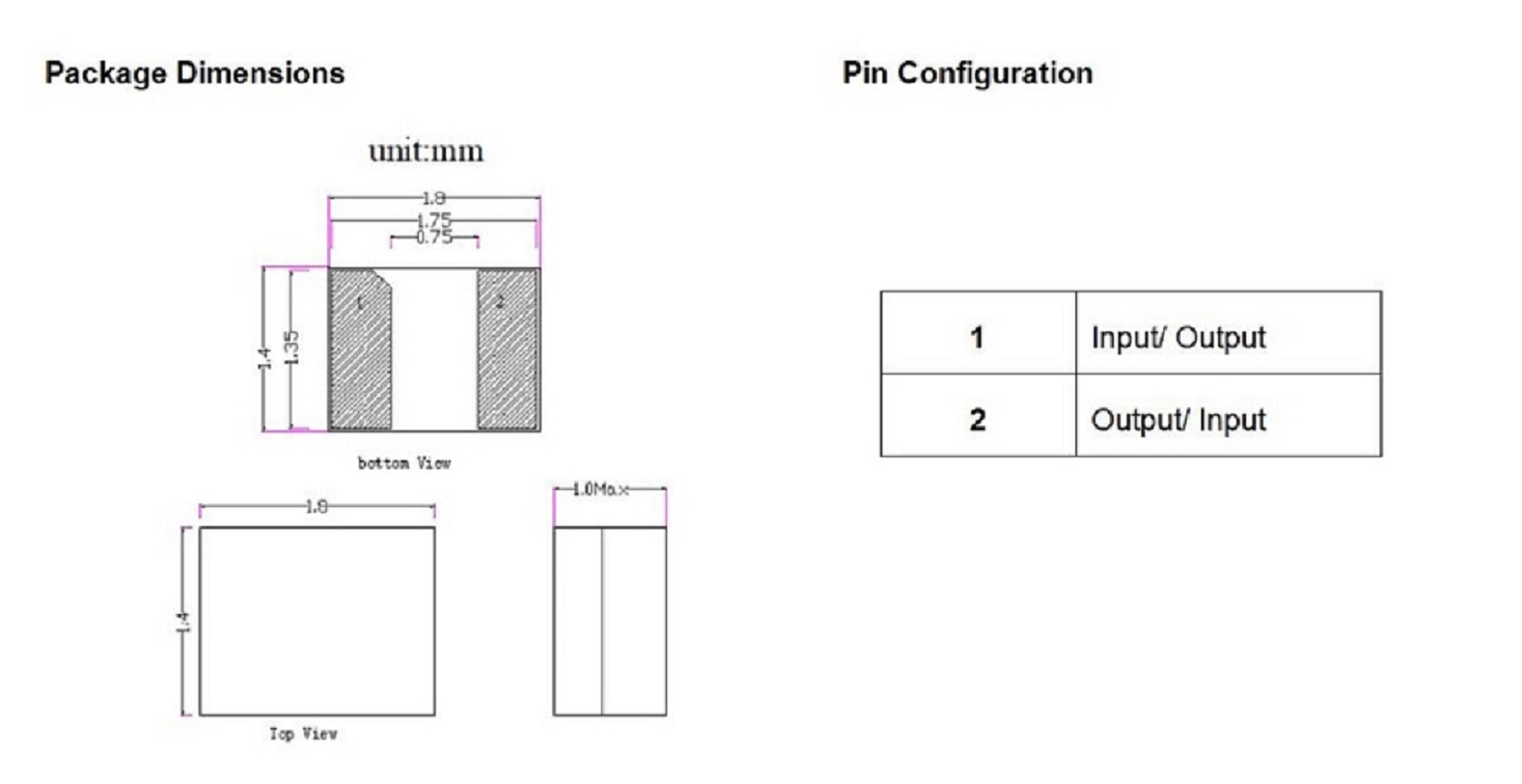

Dimensions And Soldering Plattern:
