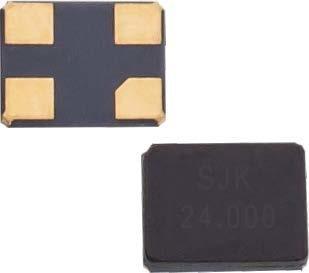

7Z Glass Crystal Quartz Crystal Resonator

Type : 7Z Glass Sealed SMD Crystal

Frequency Range : 12~64MHz

Overtone Order : Fundamental

Size : 2.5u00d72.0u00d70.75mm

Packing Unit : 3000pcs./Reel

Applications : Telecommunications, PC, DVC, DSC, etc

Contact Now

Specifications and Dimensions

Features

2520 size miniature and lightweight SMD crystal resonator with a low profile of 0.75mm

Wide frequency range from 12MHz up to 64MHz

Excellent heat resistance.

High precision and high reliability

Automatic mounting and reflow soldering

Applications: Telecommunications, Consumer Device, DVC, PC, DSC, Automotive Applications, etc.

RoHS Compliant

Specifications

Type	7Z Glass Sealed SMD Crystal
Frequency Range	12~13MHz	13~20MHz	20~27MHz	27~64MHz
Overtone Order	Fundamental
Load Capacitance	8pF, 10pF, 12pF, or specify
Drive Level	1~50μW Max. (10μW Typ.)
Frequency Tolerance	±10ppm, ±20ppm, or specify
Series Resistance	200Ω Max.	150Ω Max.	80Ω Max.	60Ω Max.
Shunt Capacitance	5pF Max.
Operating Temperature	-20~+70℃, -40~+85℃, or specify
Storage Temperature	-55~+125℃
Aging (at 25℃)	±3ppm /Year Max.
Packing Unit	3000pcs./Reel

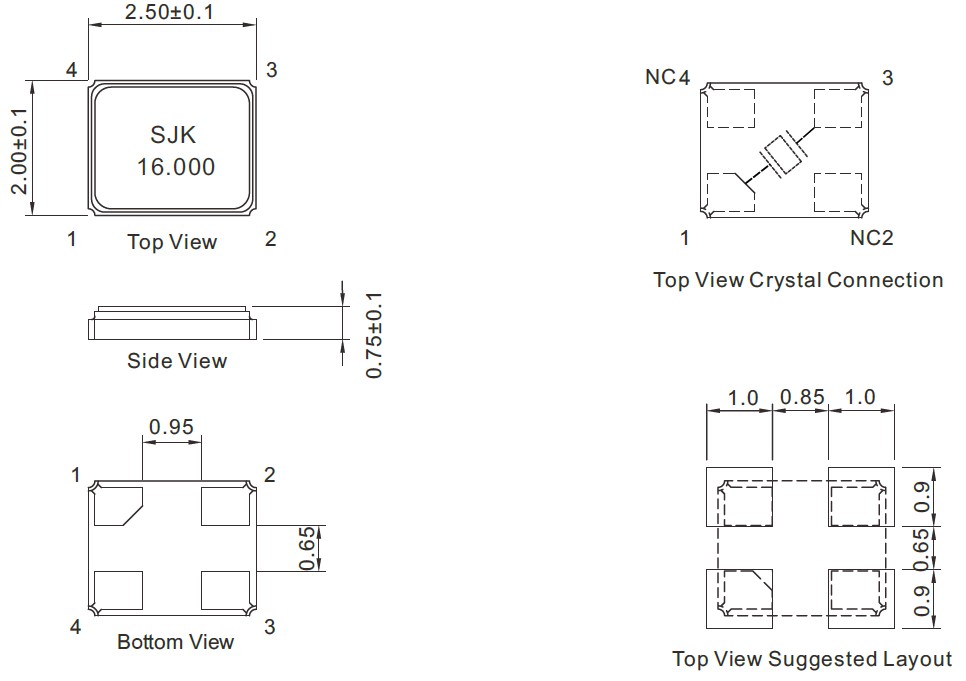

Dimensions [mm]
